Understanding Wall-Mounted Air Conditioning Systems
Wall AC units represent a distinct category within residential and light commercial cooling infrastructure. Unlike central systems that distribute air through ductwork or window units that occupy valuable glazing space, these systems mount permanently on interior or exterior walls. Industry data from 2023 shows wall-mounted units account for approximately 28% of single-room cooling installations across North American residential properties. Visit acrepair for more.
These systems operate through a split configuration. An outdoor compressor unit connects via refrigerant lines to an indoor evaporator mounted through the wall. This design eliminates the need for extensive ductwork while maintaining permanent installation status.
Property owners frequently select wall-mounted configurations for additions, converted spaces, and rooms where central system extension proves cost-prohibitive.
The capacity range typically spans 9,000 to 24,000 BTU for residential applications. A 12,000 BTU unit effectively cools spaces between 450 and 550 square feet under standard ceiling heights and insulation conditions.
Commercial-grade wall units extend to 36,000 BTU for larger applications. Installation depth requirements vary but generally demand 14 to 16 inches of wall penetration to accommodate the sleeve and unit chassis.
Common Failure Modes Requiring Professional Intervention
Wall AC units experience predictable failure patterns tied to component wear and environmental exposure. Compressor failure represents the most costly repair scenario, with replacement parts ranging from $450 to $1,200 depending on unit capacity and refrigerant type. Units operating beyond their eighth year show compressor failure rates approaching 18% annually according to appliance reliability databases.
Refrigerant leaks occur at connection points where copper lines join the wall sleeve. Vibration from compressor cycling gradually loosens brazed joints. R-410A refrigerant, now standard in units manufactured after 2010, escapes through microscopic gaps at rates as small as two ounces annually.
This gradual loss reduces cooling capacity by approximately 5% per ounce leaked. An air conditioning repair services call for refrigerant recharge without leak detection merely postpones system failure by six to eighteen months.
Electrical component degradation follows exposure patterns. Capacitors maintain starting torque for compressor motors but degrade under thermal cycling. Capacitor failure symptoms include clicking sounds without compressor engagement or intermittent cooling cycles.
These components fail predictably after 40,000 to 60,000 operating hours. In high-use climates averaging 2,400 cooling hours annually, capacitors approach end-of-life between years seven and ten.
Drainage systems clog through algae accumulation and airborne particulate collection. The condensate pan collects moisture extracted from indoor air—often two to four gallons daily in humid climates. Blocked drain lines cause pan overflow, creating interior water damage and system shutdown through float switch activation.
This failure mode accounts for roughly 22% of emergency service calls during peak cooling months.
Fan motor bearings wear through continuous operation, producing grinding noise signatures before complete failure. Evaporator fan motors in wall units operate at 900 to 1,100 RPM continuously during cooling cycles. Bearing assemblies rated for 50,000 hours reach critical wear around year six in continuously occupied spaces.
Motor replacement costs range from $180 to $340 for parts, with labor adding $120 to $200 depending on unit accessibility.
Diagnostic Protocols for Accurate Problem Identification
Professional air conditioner repair begins with systematic diagnostic assessment. Technicians measure supply air temperature at evaporator outlets, targeting 15 to 22 degrees below return air temperature. Deviations outside this range indicate specific component failures.
Supply air only 8 degrees cooler than return air suggests refrigerant undercharge, compressor inefficiency, or evaporator coil restriction.
Amp draw testing quantifies compressor electrical consumption against nameplate specifications. A compressor rated for 12.5 amps drawing 15.8 amps signals mechanical resistance—often from bearing wear or refrigerant system contamination. Draw measurements below specification indicate reduced compression, pointing toward valve failure or internal component damage.

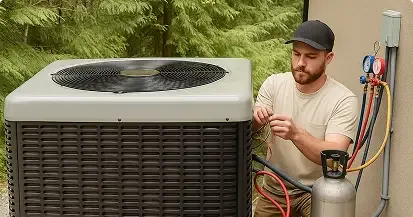

Refrigerant pressure testing requires gauge connection at service ports. Technicians compare static pressures against temperature-pressure charts specific to refrigerant type. R-410A systems should show static pressure near 240 PSI at 75°F ambient temperature.
Operating pressures divide into suction side (115-135 PSI typical) and discharge side (375-425 PSI typical) under standard load. Pressure readings outside these ranges indicate specific failure modes.
Low suction pressure combined with low discharge pressure confirms refrigerant loss. High suction pressure with low discharge pressure points to compressor inefficiency.
Airflow measurement uses anemometer readings at supply registers. Wall units should deliver 350 to 450 cubic feet per minute per ton of cooling capacity. A 12,000 BTU (one-ton) unit producing only 250 CFM indicates blower motor failure, duct restriction, or evaporator coil blockage.
Reduced airflow decreases heat transfer efficiency, forcing longer run cycles and increased energy consumption.
Repair Versus Replacement Decision Framework
The repair-or-replace calculation incorporates multiple variables beyond simple cost comparison. Industry guidelines suggest replacement when repair costs exceed 50% of new unit installed price for systems beyond their tenth year. A wall a/c unit requiring $800 in compressor repairs at age twelve rarely justifies the investment when complete replacement costs $1,600 to $2,200 installed.
Energy efficiency improvements alter this calculation significantly. Units manufactured before 2010 operate at SEER (Seasonal Energy Efficiency Ratio) ratings between 9 and 11. Current minimum federal standards mandate SEER 15 for new installations, with premium models reaching SEER 19.
This efficiency gap translates to measurable operating cost differences. A 12,000 BTU unit upgrading from SEER 10 to SEER 16 reduces annual electricity consumption by approximately 375 kWh in moderate climates. At $0.14 per kWh, this yields $52.50 annual savings.
Simple payback calculation shows replacement cost recovery in 12-15 years for efficiency gains alone.
Refrigerant type compatibility affects repair feasibility. Units designed for R-22 refrigerant face component availability challenges as production ceased in 2020 under environmental regulations. Remaining R-22 inventory trades at $90 to $150 per pound compared to $12 to $20 per pound for R-410A.
A refrigerant recharge requiring three pounds of R-22 costs $270 to $450 for materials alone. This cost differential accelerates replacement economics for older systems.
An ac repair company evaluating a failing unit considers the cascade failure risk. When primary components fail on aged systems, secondary failures follow predictably. A compressor replacement on a twelve-year-old unit faces 35-40% probability of requiring additional repairs within eighteen months as other components approach end-of-life simultaneously.
This risk factor influences professional recommendations toward replacement.
Installation Best Practices and Code Compliance
Proper wall AC unit installation requires attention to structural, electrical, and mechanical specifications. Wall penetration must include weatherproof sleeve installation with proper pitch for condensate drainage. Building codes typically mandate 1/4 inch per foot slope away from interior spaces.
Improper sleeve installation allows water infiltration during rain events, causing concealed wall cavity damage.
Electrical circuit sizing must match unit specifications with appropriate safety margin. A 12,000 BTU unit drawing maximum 11.2 amps requires minimum 15-amp dedicated circuit protection. National Electrical Code stipulates circuits loaded to no more than 80% of rated capacity for continuous loads.
Professional installations therefore use 20-amp circuits for units drawing 10-12 amps, preventing nuisance breaker trips during startup surge currents.
Refrigerant line installation follows strict protocols. Copper tubing must remain clean and dry during installation. Contamination from moisture, cutting oils, or debris causes system failures through acid formation and component corrosion.
Technicians pressure-test completed lines at 400 PSI for R-410A systems, holding pressure for minimum twenty minutes. Pressure drop exceeding 0.5 PSI indicates leaks requiring correction before refrigerant charging.
Line set length affects system performance measurably. Manufacturers specify maximum allowable distance between indoor and outdoor units—typically 25 to 50 feet depending on capacity. Exceeding these limits requires refrigerant charge adjustment and may void warranty coverage.
Each additional foot of line set beyond specifications reduces efficiency by approximately 0.5% through increased pressure drop and refrigerant volume requirements.
Proper evacuation removes air and moisture before refrigerant introduction. Professional installations achieve vacuum levels below 500 microns using dedicated vacuum pumps. This process requires 30 to 45 minutes for typical wall unit installations.
Inadequate evacuation leaves non-condensable gases and moisture that reduce capacity and accelerate component failure. Systems showing premature compressor failure often trace back to installation evacuation shortcomings.
Preventive Maintenance Schedules and Component Longevity
Air conditioning maintenance extends operational life expectancy and maintains efficiency ratings. Filter replacement represents the most critical owner-performed task. Disposable filters require monthly inspection with replacement when visual light transmission reduces by half.
Reusable filters need monthly washing in mild detergent solution. Restricted airflow from dirty filters increases energy consumption by 8-12% and accelerates coil fouling.
Annual professional service includes coil cleaning, refrigerant pressure verification, electrical connection inspection, and condensate drain clearing. Evaporator coils accumulate airborne particles despite filtration, reducing heat transfer efficiency. Chemical coil cleaning restores heat exchange capacity, recovering 4-7% lost efficiency.
This service typically costs $120 to $180 as part of comprehensive maintenance visits.
Outdoor condenser coil cleaning requires attention in specific environments. Properties near highways, construction zones, or agricultural operations experience accelerated coil fouling from airborne particulates. Condenser coils should maintain visual light transmission through fin spacing.
Cleaning intervals range from annually in clean environments to quarterly in high-contamination locations. Restricted condenser airflow increases head pressure, forcing compressor power consumption upward by 10-15%.
Refrigerant charge verification prevents the gradual performance degradation from minor leaks. Annual pressure testing identifies slow losses before they cause compressor damage from inadequate cooling oil circulation. Detecting and repairing a leak when the system has lost only 10% of charge costs substantially less than addressing compressor failure after complete refrigerant loss.
Component replacement on scheduled intervals prevents emergency failures. Capacitors showing measurable capacitance loss below 10% of rating should undergo replacement before failure. Proactive capacitor replacement costs $85 to $120 installed.
Emergency replacement during system failure adds service call premiums of $150 to $250 for after-hours or weekend response.
Energy Performance Optimization Strategies
Wall AC unit efficiency depends on proper sizing, installation quality, and operational parameters. Oversized units short-cycle, running frequent brief cooling periods rather than extended cycles. This operation pattern fails to achieve adequate dehumidification and increases wear on starting components.
Proper sizing calculations account for room volume, window area and orientation, insulation values, and occupancy patterns.
Thermostat placement significantly affects cycling behavior. Thermostats mounted within three feet of supply air registers sense artificially low temperatures, causing premature cycle termination. Optimal placement positions sensors on interior walls away from direct sunlight, exterior walls, and supply air streams.
Poor thermostat location can increase energy consumption by 15-20% through excessive cycling.
Temperature setpoint selection influences both comfort and efficiency. Each degree of cooling setpoint below 75°F increases energy consumption approximately 3-5%. Properties maintaining 68°F setpoints consume 21-35% more energy than those at 75°F.
Programmable controls reducing setpoint during unoccupied hours yield 8-12% annual energy savings in residential applications.
Supplemental dehumidification improves comfort at higher temperature setpoints in humid climates. Standalone dehumidifiers consume 0.4 to 0.6 kWh per gallon of water removed. Reducing a/c setpoint for dehumidification alone consumes 1.2 to 1.8 kWh per equivalent gallon.
The equipment combination of higher cooling setpoint plus dedicated dehumidification reduces total HVAC energy consumption by 12-18% in coastal and southeastern climates.
Selecting Qualified Service Providers
Professional qualifications separate competent ac system service from inadequate work. Technicians should hold EPA Section 608 certification for refrigerant handling—a federal requirement since 1993. This certification exists in three levels: Type I for small appliances, Type II for high-pressure systems, and Type III for low-pressure systems.
Wall unit service requires Type II certification minimum. Universal certification indicates technician qualification across all categories.
State-level licensing requirements vary significantly. Twenty-three states mandate contractor licensing for HVAC work, while others impose local or county requirements. Licensed contractors demonstrate minimum competency through examination and maintain liability insurance and bonding.
Working with unlicensed providers creates liability exposure when installation defects cause property damage or personal injury.
Service company longevity indicates market reputation and technical competence. Companies operating continuously for ten years or longer have survived multiple economic cycles and maintained customer satisfaction sufficient to generate ongoing business. New market entrants lack this track record.
Better Business Bureau ratings and online review aggregation provide additional reputation indicators, though these require critical evaluation for review authenticity.
Warranty coverage quality varies substantially between providers. Comprehensive warranties cover both parts and labor for minimum one year on repairs. Equipment installation warranties should extend three to five years for refrigerant system components and one year for electrical components.
Warranty terms excluding labor coverage shift significant cost risk to property owners when premature failures occur.
Transparent pricing structures benefit consumers through predictable costs. Reputable contractors provide written estimates detailing parts, labor, and applicable fees before commencing work. Diagnostic fees should apply toward repair costs when customers approve recommended work.
Companies charging diagnostic fees that don't credit toward repairs extract maximum revenue from declined estimates.
Technological Advances in Wall-Mounted Systems
Inverter-driven compressor technology represents the most significant efficiency advancement in wall a/c units over the past decade. Traditional fixed-speed compressors operate binary—full capacity or off. Inverter compressors modulate speed continuously from 20% to 100% capacity, matching cooling output to thermal load precisely.
This variable operation reduces cycling frequency and achieves SEER ratings 20-30% higher than fixed-speed equivalents.
Smart connectivity features enable remote monitoring and control through smartphone applications and home automation integration. Occupancy sensors adjust operation based on room usage. Geofencing technology initiates cooling cycles when residents approach home, optimizing comfort and efficiency.
Usage data collection identifies abnormal operating patterns indicating developing component failures before complete breakdown occurs.
Air quality enhancements integrate into modern wall units through advanced filtration and purification systems. HEPA filtration captures particles to 0.3 microns, removing airborne allergens, smoke particles, and biological contaminants. Ultraviolet germicidal irradiation systems installed in evaporator compartments neutralize mold, bacteria, and virus particles on surfaces and in passing airstreams.
These features address growing consumer focus on indoor environmental quality beyond temperature control alone.
Refrigerant evolution continues toward reduced environmental impact. R-32 refrigerant adoption increases in residential equipment as manufacturers transition from R-410A. R-32 delivers similar thermodynamic performance while reducing global warming potential by 68%.
This transition requires minimal equipment redesign while supporting environmental objectives. Regulatory trajectories suggest R-32 will dominate new a/c production by 2027-2028.
